Moot_One Desktop CNC Machine Plans


This purchase contains downloadable:

  • Moot_One Desktop CNC Machine DIY Manual / Plans.
  • 2D DXF Plate Files.
  • 3D Printed Part Files.
  • Part Tally Document.
  • Tool Tally Document.

If printed variation selected, this will include the above digital files plus a physical copy of manual.


Digital files and plans needed to build the Moot_One Desktop CNC Machine, with the option of a printed version of the manual when in stock. Digital plans and files have been updated to version 1.1 in early 2021, but printed copy will remain as original version until sold out.

This bundle includes a PDF manual with over 100 pages of detailed instruction and illustrated diagrams. The plate designs come as DXF vector illustrations. There are also some STL parts which can be 3D printed. You will also receive two spreadsheets which can be used to tally the cost of parts and tools needed to complete the projects.

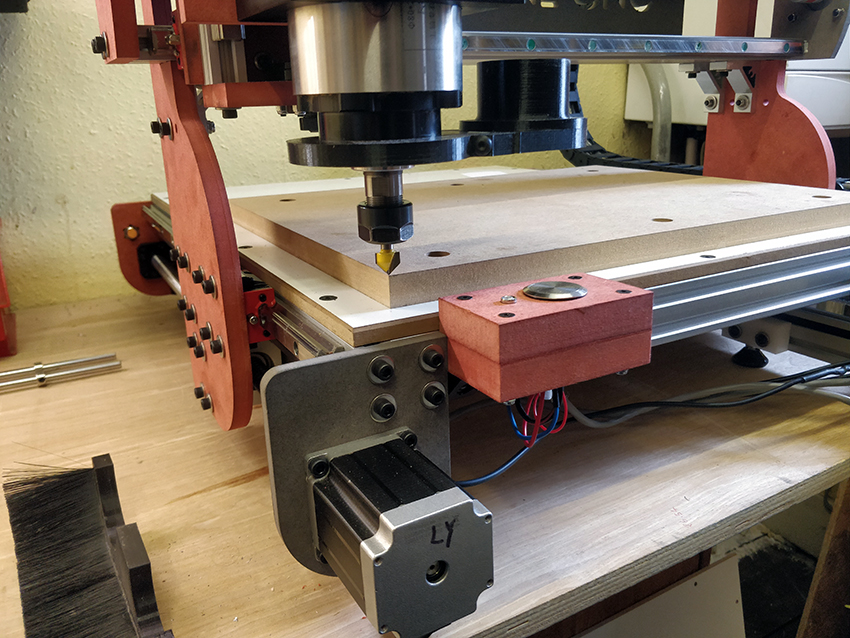

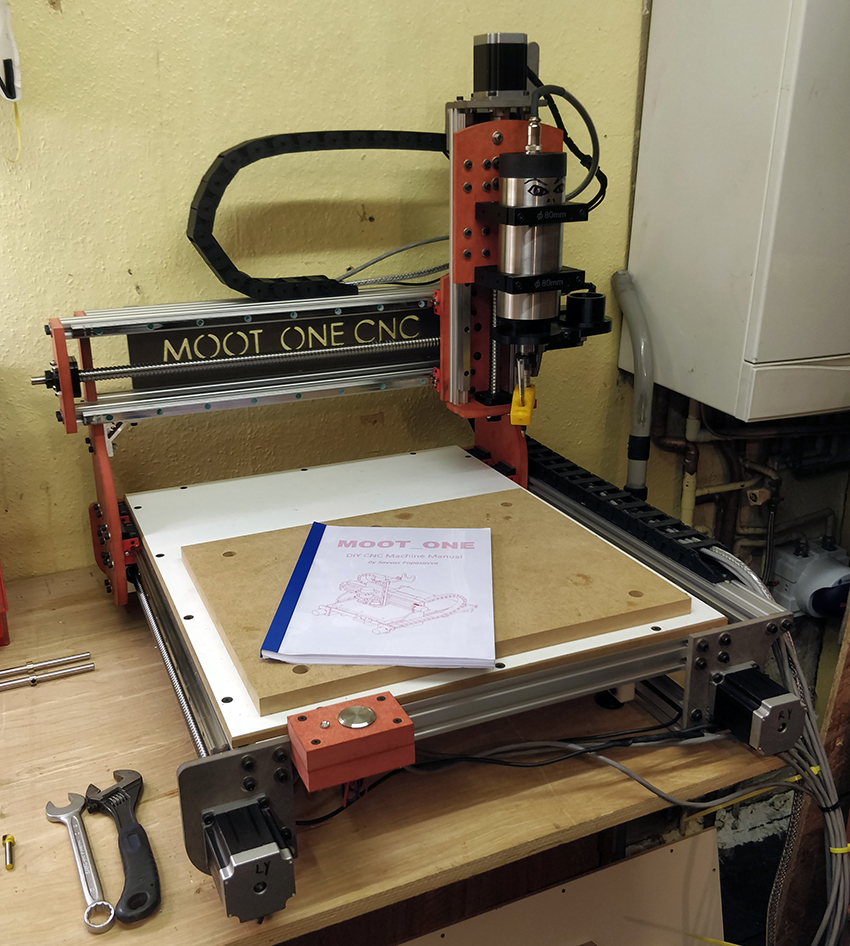

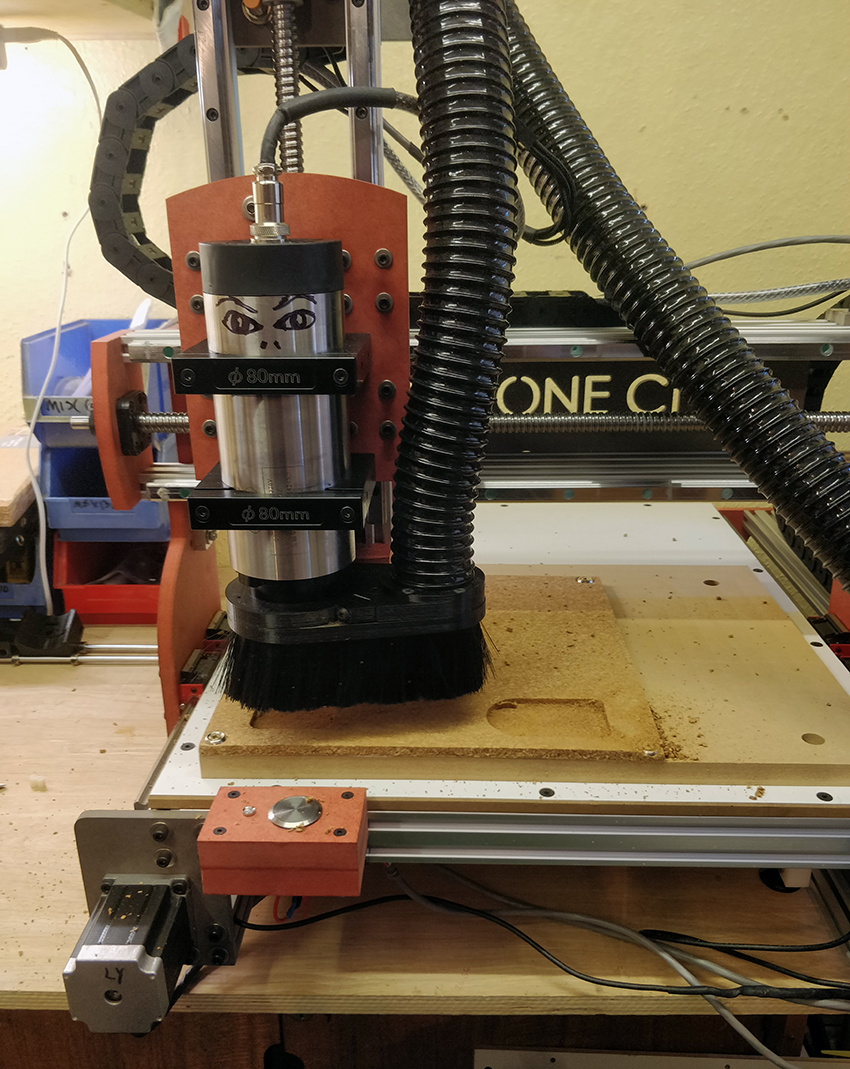

This design is for a desktop CNC machine, with a waste-board size of 450 along the X axis, and 350mm along the Y axis – not including an additional 80mm overhang towards the front of the machine. The Z axis height is up to 90mm not including the sacrificial waste-board which reduces that by 18mm.

There is some advice on electrical controllers, but the manual does not go into detail. Instead the focus is on the mechanical assembly and steps to ensure accuracy when building. Please refer to this free post on my website about a basic CNC controller: Duet Basic CNC Controller (Moot_Basic) | Savvas Papasavva (

The printed versions will be limited edition, and have the front page drawn using a Moot_One CNC machine.  Tracked shipping is calculated at checkout based on your delivery location. Domestic UK shipping is an additional £4, while to Europe is £10 and all other international location at £14. **PRINTED MANUAL IS NO LONGER AVAILABLE**

If you have any questions please ask before purchasing.

Additional information

Weight 0.420 kg
Dimensions 340 × 235 × 14 mm
Select Type

Digital Copy Only, Printed + Digital Copy
